Case Study: Copper Mine Repair Pump Housing Heavily Damaged By River Water Extraction
Years of extracting river water containing sand, silt, stones and other debris had left pump housing at a copper mine in Bulgaria heavily damaged. When the cost of fabricating and installing a replacement was deemed too expensive, the mine instead made a pump housing repair with technical support from a Sylmasta approved supplier in the country.
Case Study Overview
Site Copper mine
Location Bulgaria
Repair Type Pump housing repair
Defect Heavily damaged metalwork
Repair Products
Ceramic Brushable Epoxy Coating,
WearShield Epoxy Paste
Case Study PDF
Case Study Details
The pump housing was part of a system which extracted water from a nearby river and transported it around the copper mine, where it was then used in a number of different processes.

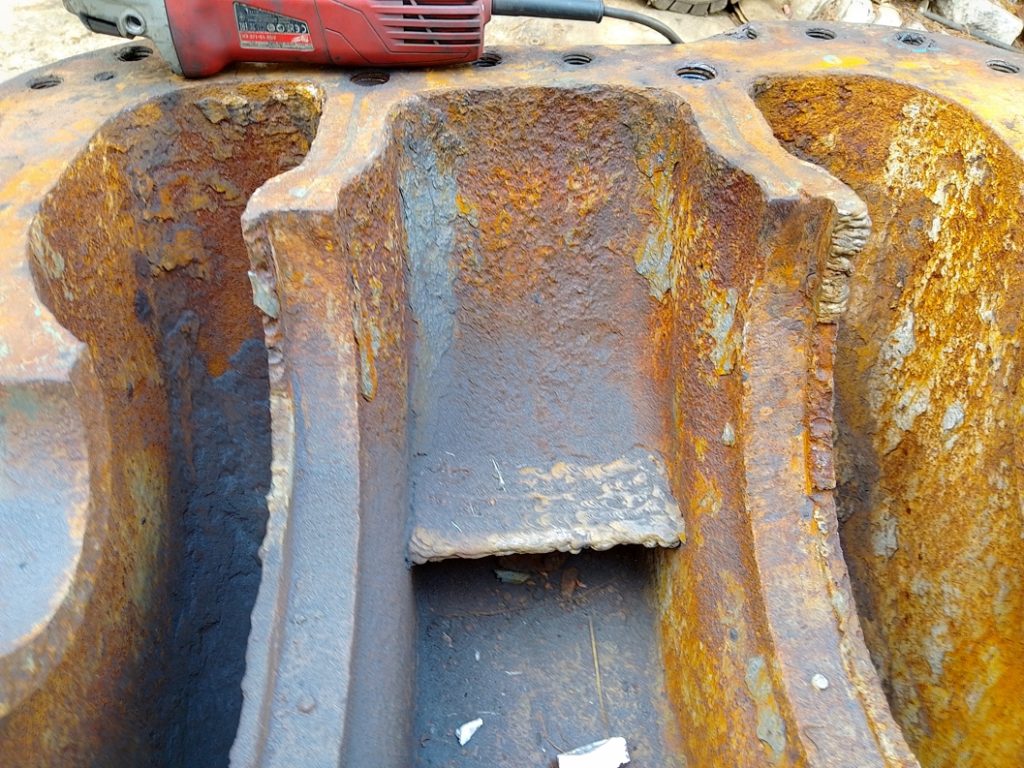

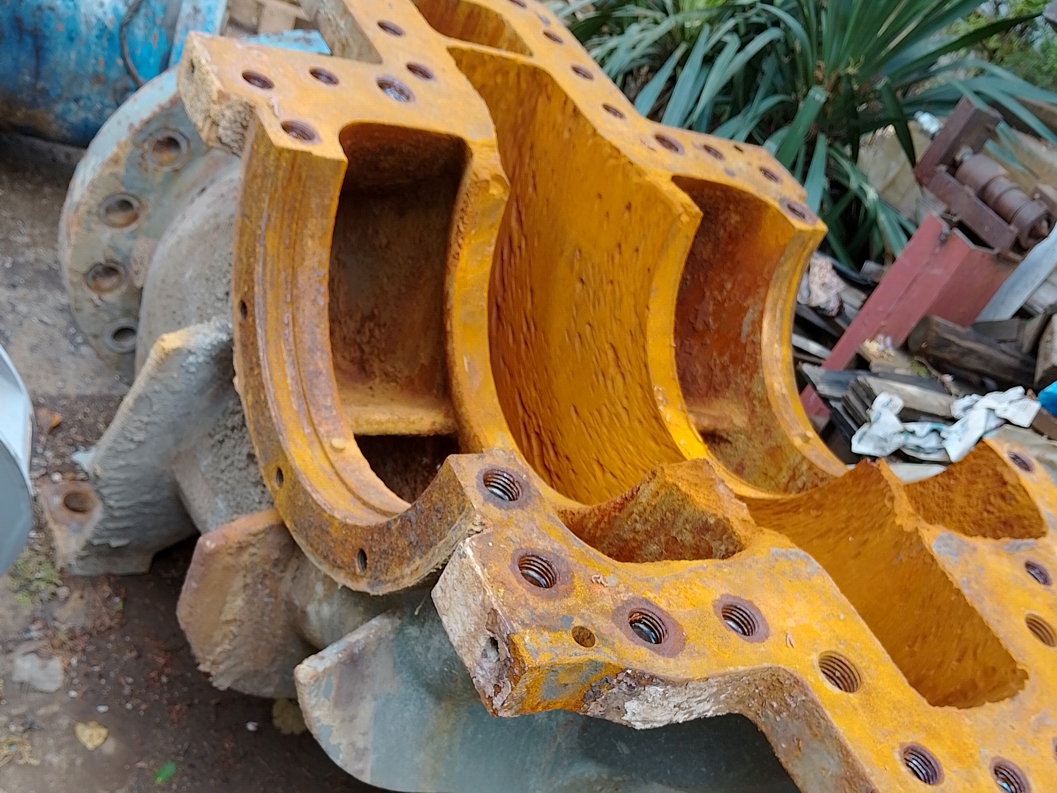

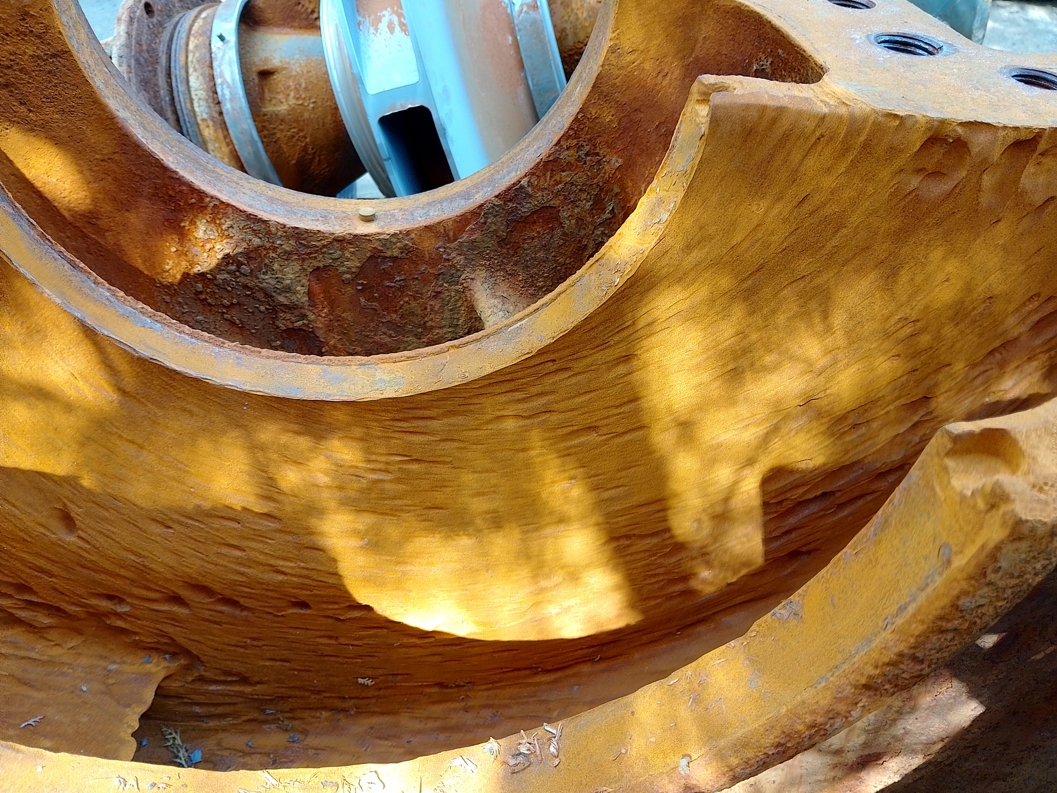

Sand, silt, dirt, stones and other debris were all present in the water as it passed through the pump housing. Following years of exposure to the river water, the housing was now suffering from severe corrosion, abrasion and wear damage.
As it appeared the pump housing was beyond repair, the mine sought quotes for fabrication and installation of a replacement part from several companies. When these were deemed too expensive, it was decided to attempt refurbishment
The mine contacted Sylmasta’s approved supplier in Bulgaria. The supplier had recently spent several days completing a comprehensive product training programme at Sylmasta HQ in the United Kingdom, including a module on restoring damaged metalwork.
They recommended using Ceramic Brushable Epoxy Coating and WearShield Epoxy Paste in conjunction to both repair the existing damage and protect the pump housing from further deterioration.
Ceramic Brushable is a ceramic-filled epoxy coating reinforced with silicon carbide. It seals and protects parts, machinery and surfaces by forming an ultra-smooth, hardened layer of protection.
WearShield is an epoxy paste heavily filled with alumina beads and a high resin content. The dense alumina structure of the cured material enables it to offer the ultimate resistance against all types of impact in the most abrasive environments.

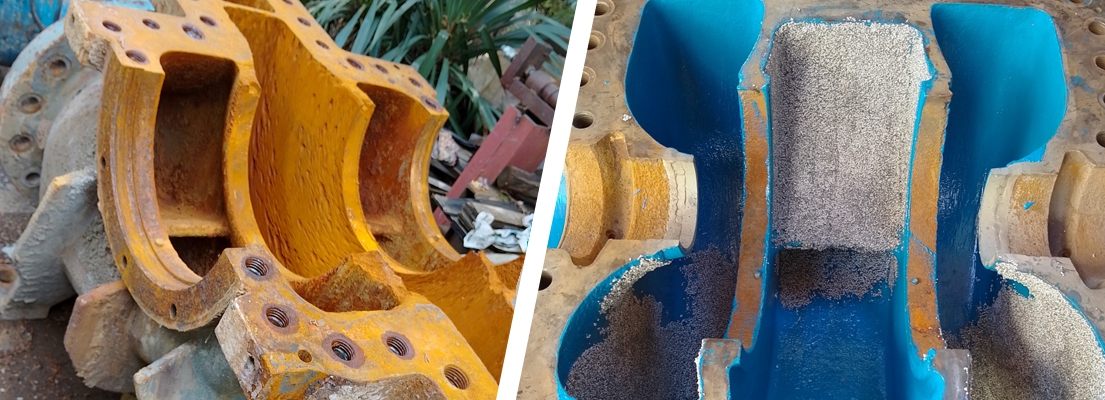

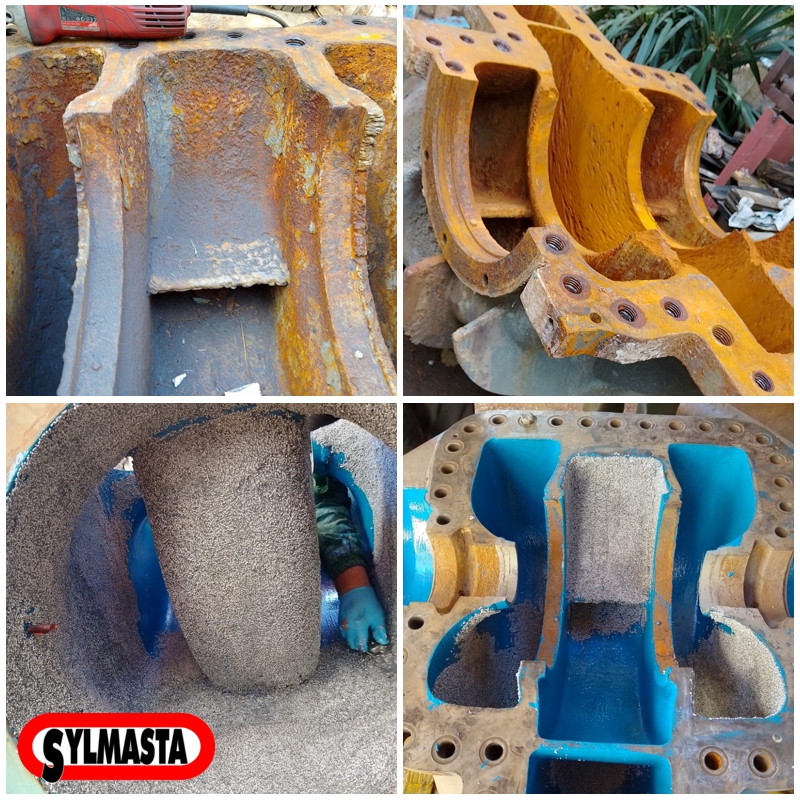

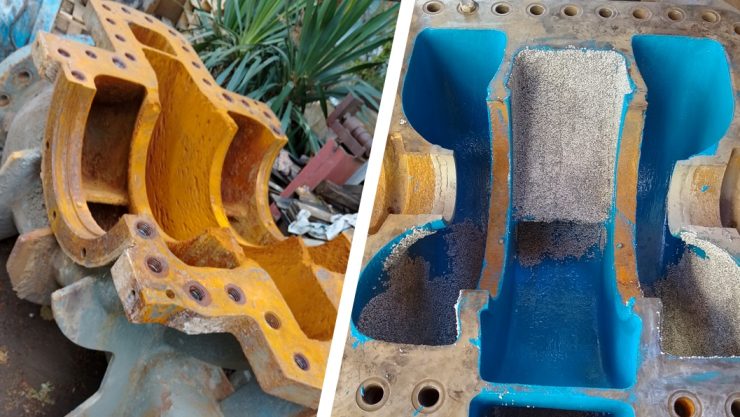

The pump housing was taken apart and thoroughly cleaned to remove as much rust, dirt and grime as possible. An initial coating of Ceramic Brushable Blue was painted all over the metalwork using a brush, sealing the original surface.

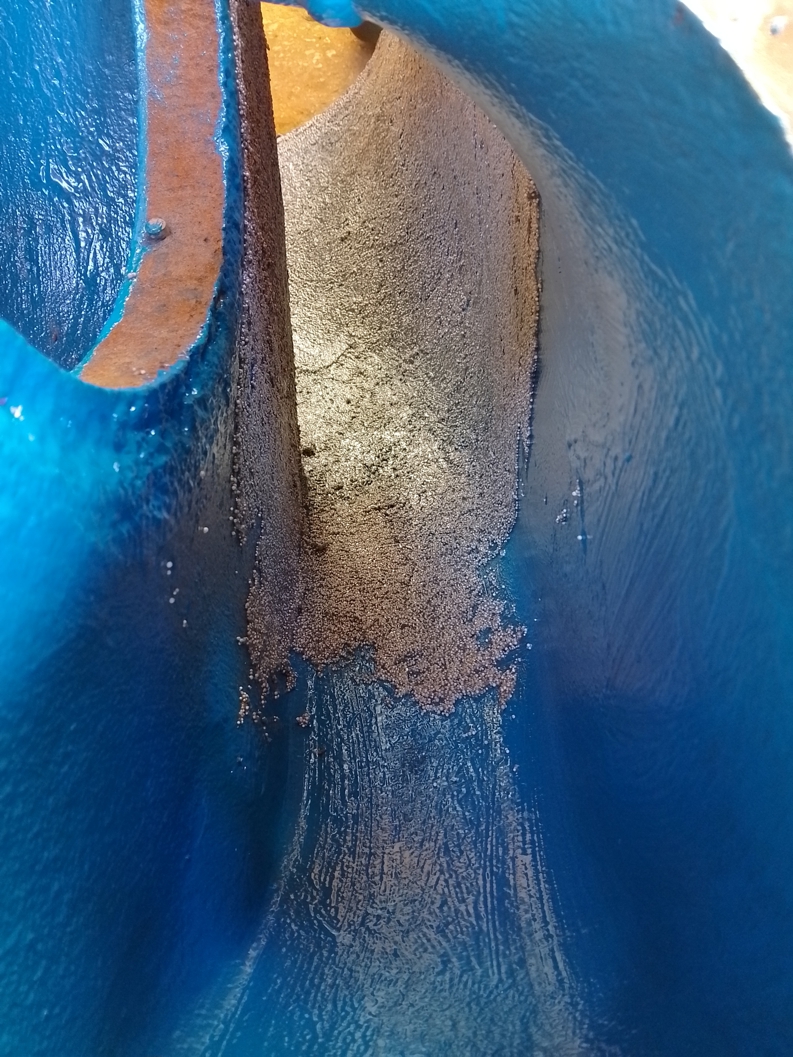

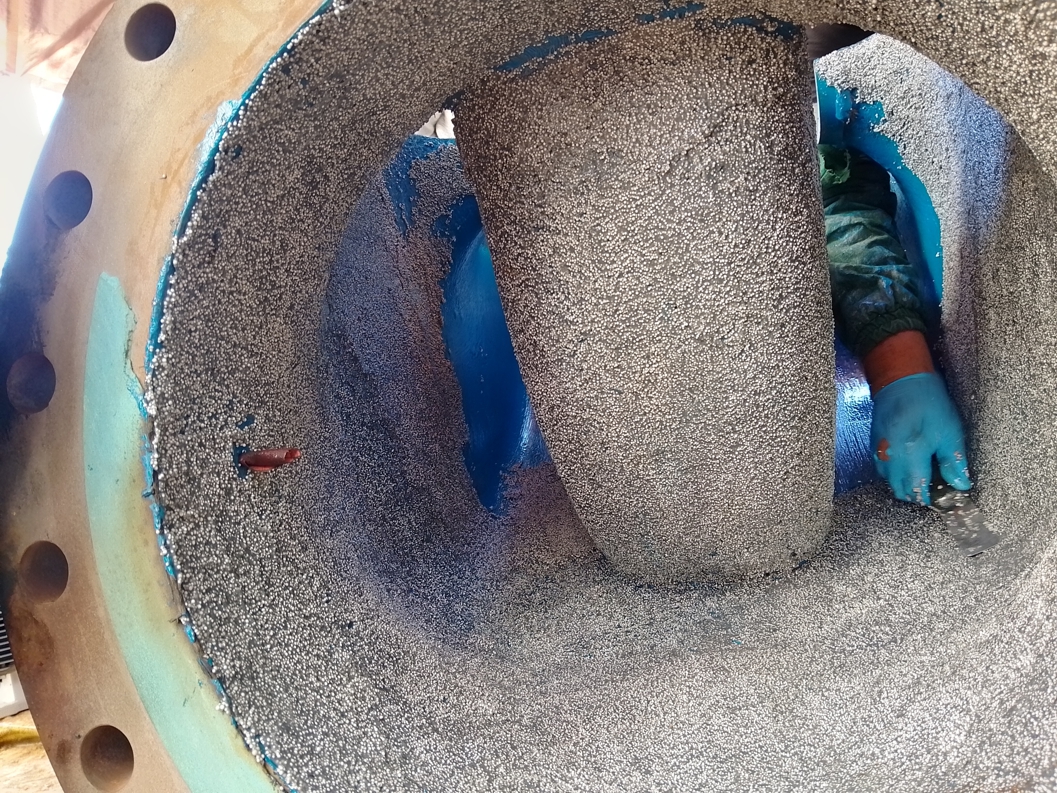

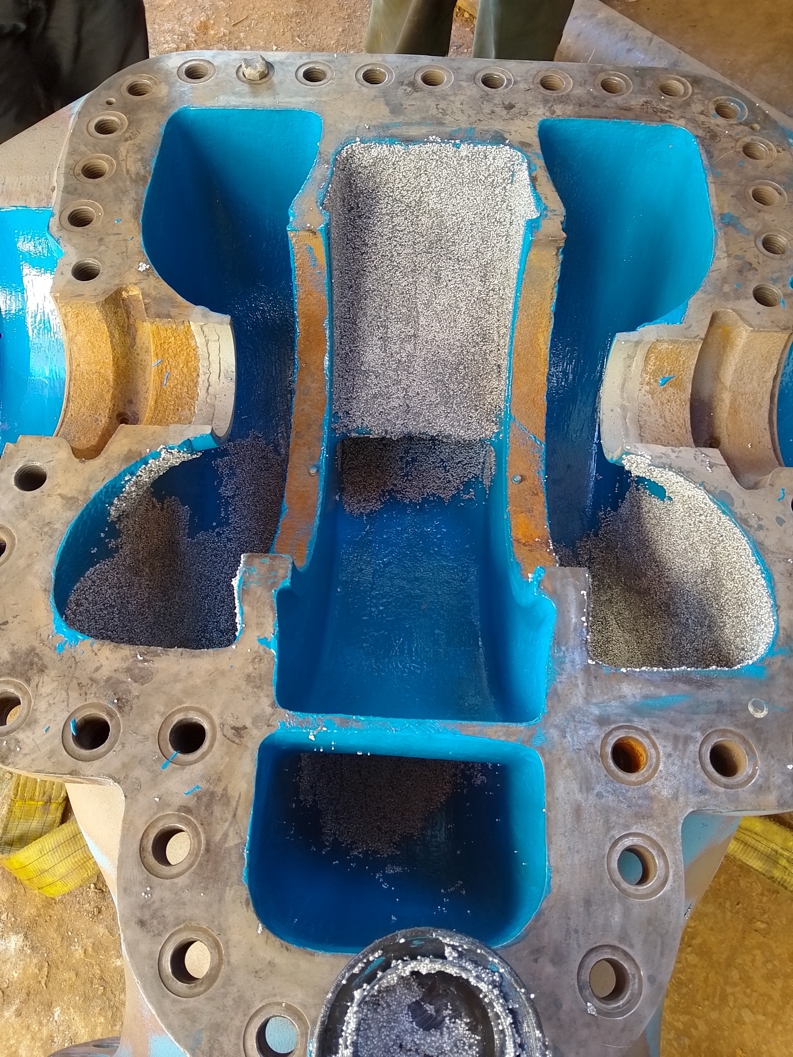

Once Ceramic Brushable had cured, WearShield was applied on top with a spreader. The composition of WearShield makes it easy to build significant, dense layers of protection quickly. In this case, WearShield cured to form a 30mm thick alumina-reinforced shell over the pump housing.

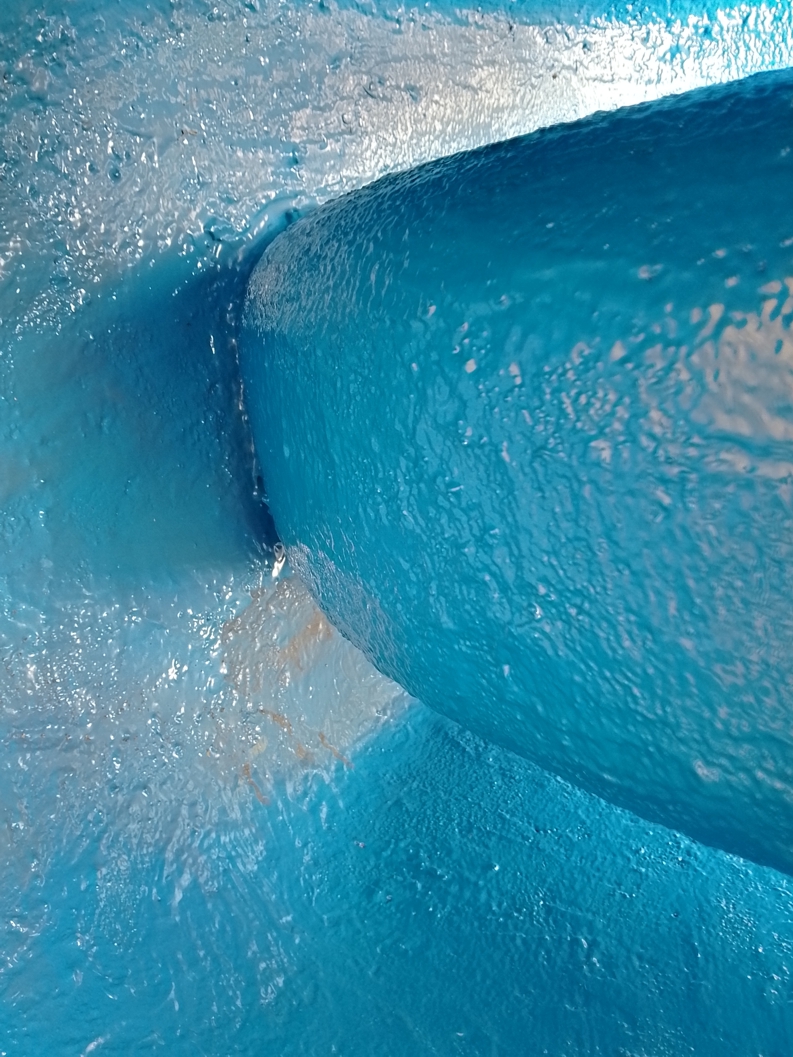

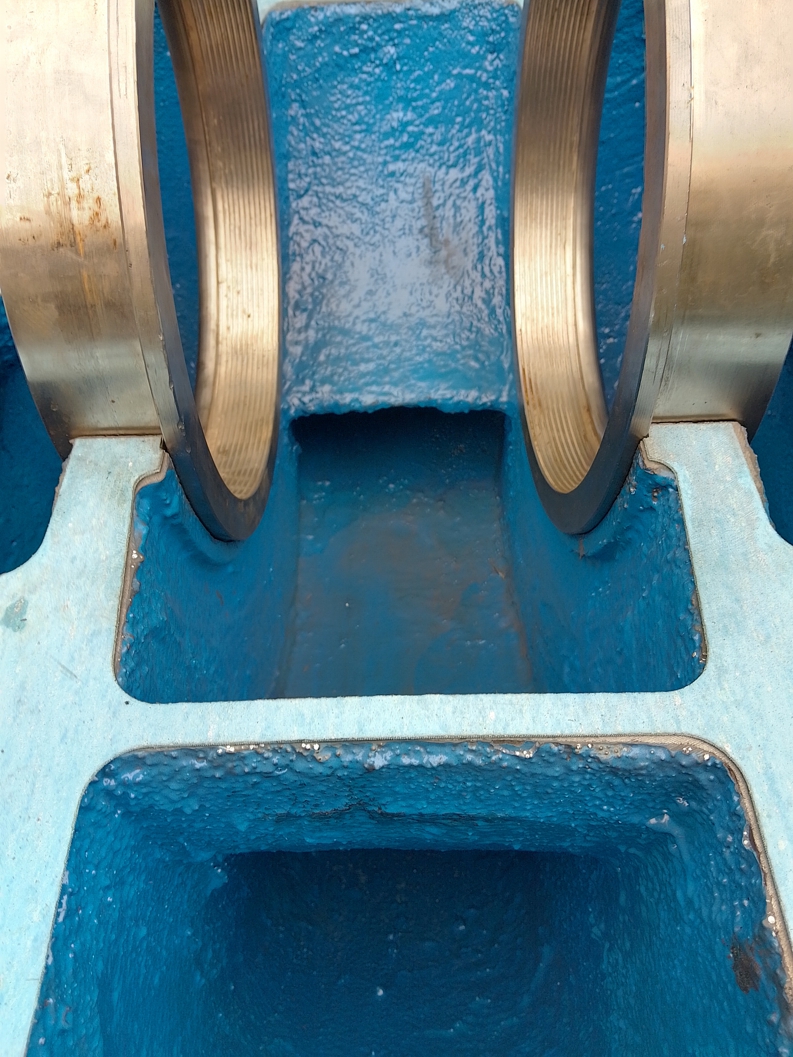

Because the alumina beads make cured WearShield a slightly rough material, it was decided to topcoat with more Ceramic Brushable. The ultra-smooth, low-friction finish provided by Ceramic Brushable would improve flow through the pump housing, making it more efficient once it went back into service.
Completing the repair took just two days and saved the mine a substantial amount of money, The pump housing will remain in service for many more years thanks to the significant protection provided by WearShield and Ceramic Brushable.
Products Used

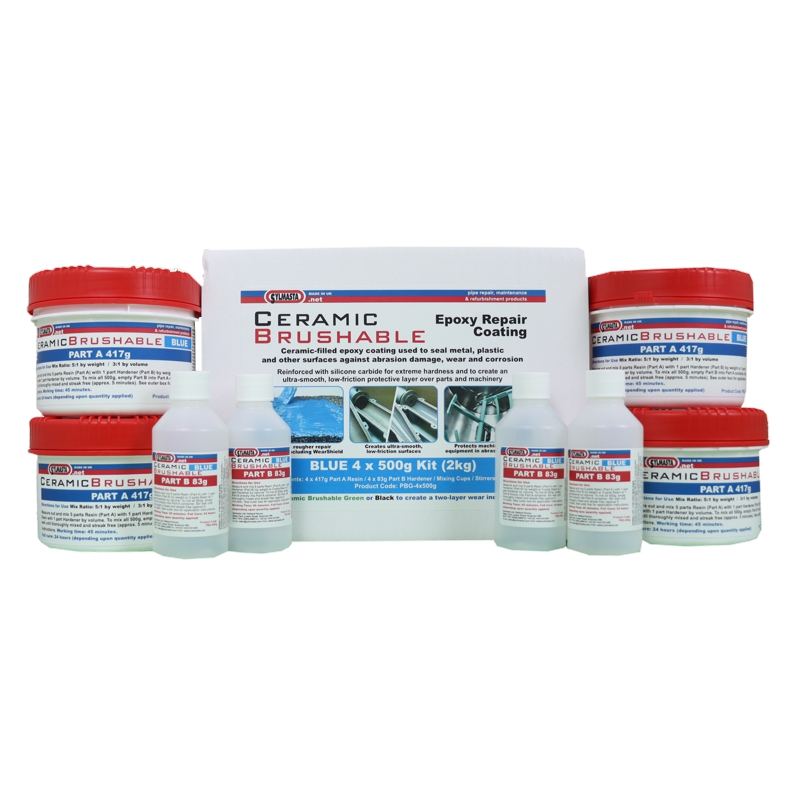

Ceramic Brushable
Ceramic-filled epoxy coating sets ultra-smooth to seal and protect equipment

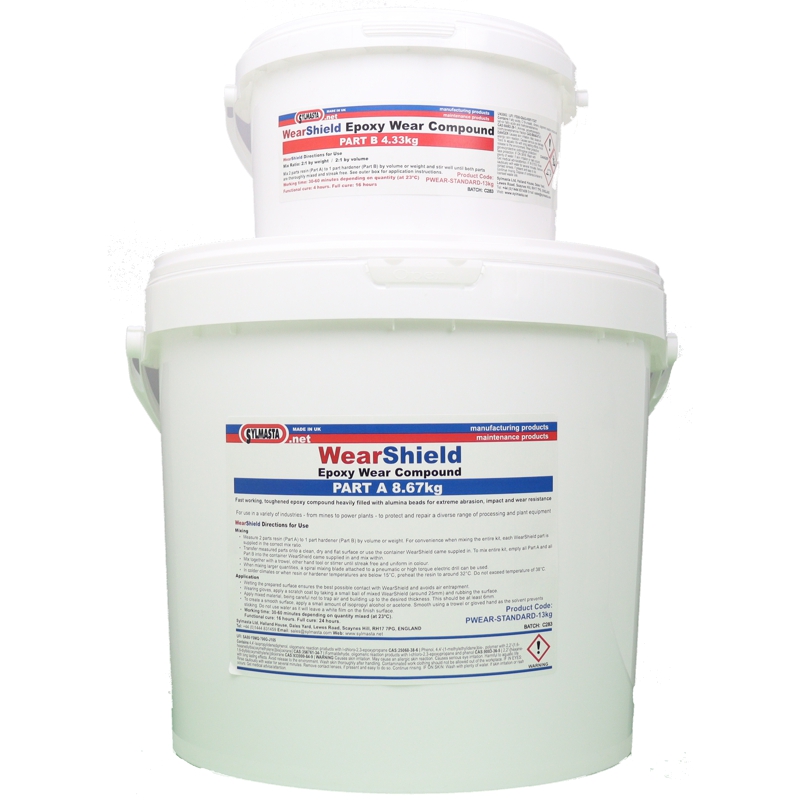

WearShield Epoxy Paste
Epoxy paste filled with alumina beads which creates an impact resistant shell over surfaces
Related Case Studies
Case Study: Power Station Repair Extensive Damage to Alloy 20 Pump Lid Caused by Impeller
Case Study: Water Treatment Plant in Puerto Rico Repair Worn Pump Extracting from a Well
Case Study: Corroded Tank Repair at a Puerto Rico Pharmaceutical Plant
Case Study: Creating an Abrasion Resistant Surface for Pug Mill Extruder Barrels

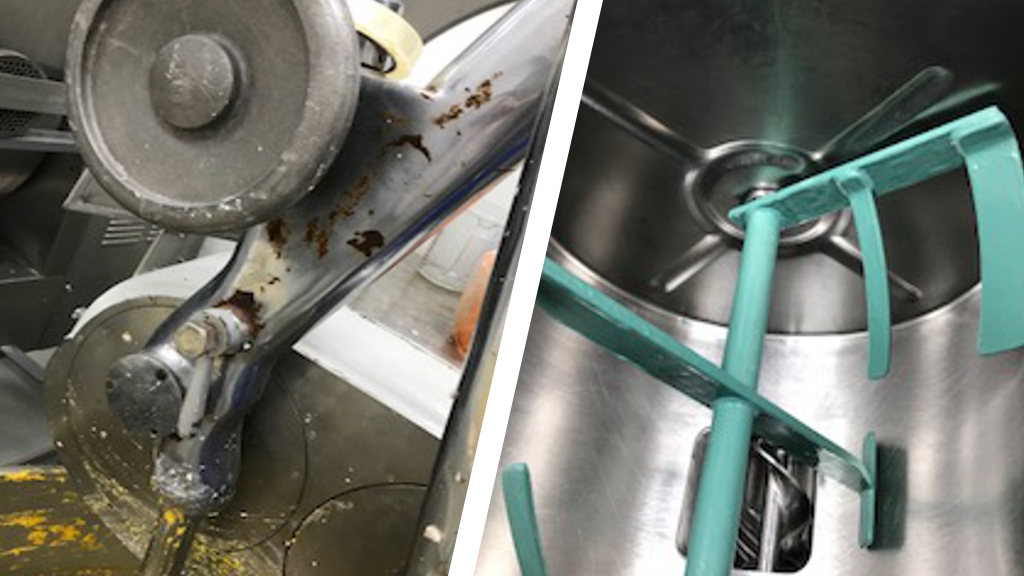

Case Study: Repair of Metal Blades in Bakery Flour Mixers Suffering From Heavy Corrosion
