Case Study Overview

Site Residential property
Location Wales
Repair Type Wood repair
Defect Heavy rotting in an oak beam

Repair Products

Sylmasta AB Original Epoxy Putty

Case Study PDF

Case Study Details

A property owner in Wales was renovating a house they had inherited, including improving its exterior appearance. The facade consisted of an untidy mix of concrete breeze blocks, painted brick and a large oak beam.

The intention was to render the entire wall with cement. Doing so required a flat, sound surface for the cement to be applied to. Unfortunately, the ancient oak was badly rotted in places with large voids which made it impossible to render successfully.

To overcome the problem, the property owner decided to repair the rotted wooden beam using Sylmasta AB Original Epoxy Putty. AB Original was chosen for its super strength, ease of application and two-hour work time, meaning more of the putty could be mixed in one go and carefully applied without needing to rush through fear of premature curing.

30kg of AB Original were delivered to the site. The putty was supplied in 200g sticks, whereby the resin and hardener are pre-measured. This eliminated the need to measure out separate components of Part A and Part B, making application quicker and more straightforward.

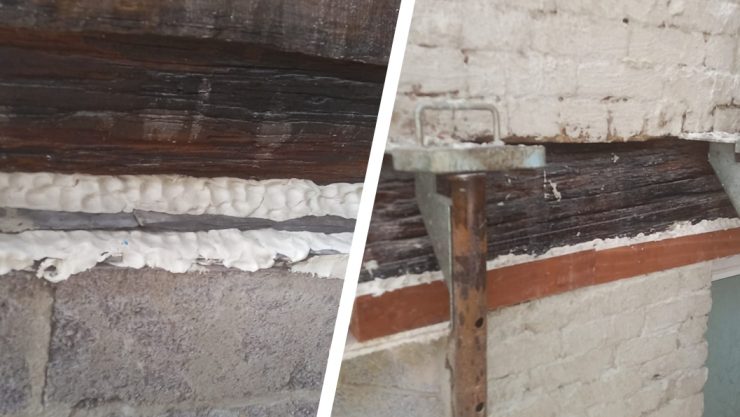

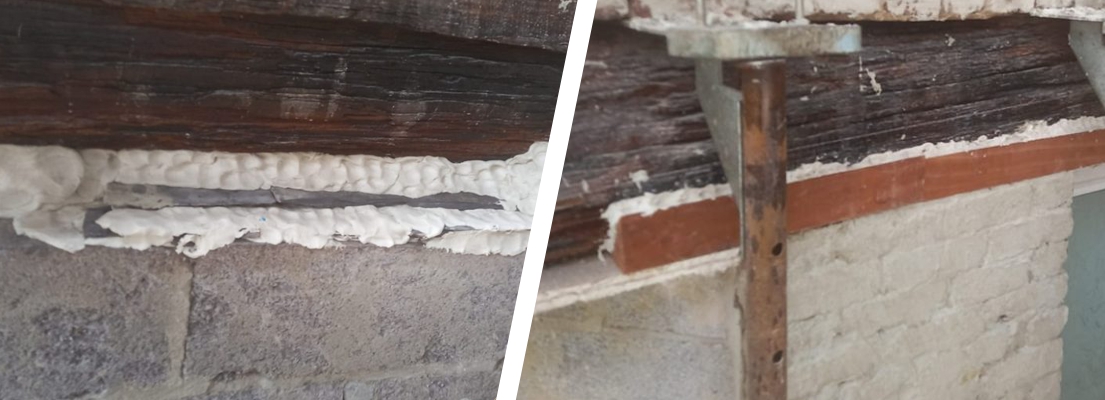

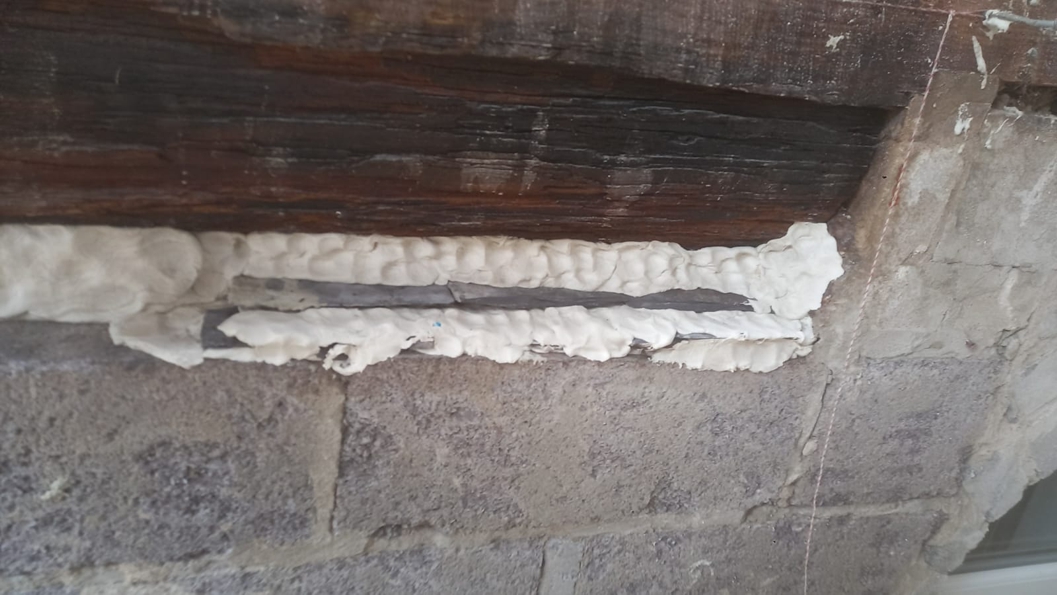

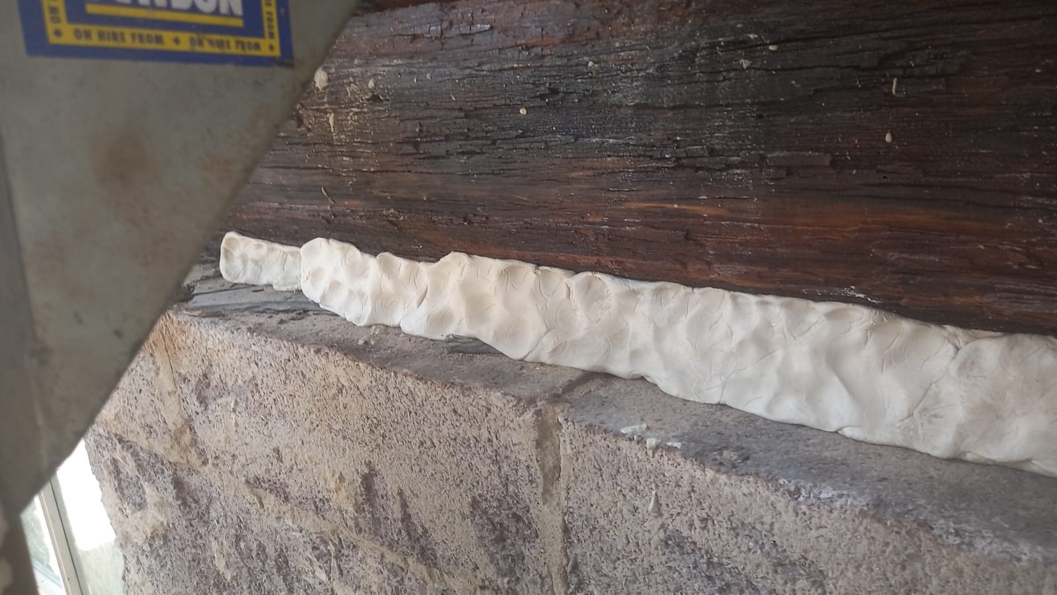

Each stick was kneaded by hand until it turned a uniform white colour. Whilst soft, AB Original was pushed into the voids left where the oak had rotted away, easily bonding to the damaged wood. The homeowner was particularly attracted to AB Original because no tools or equipment were needed for the repair.

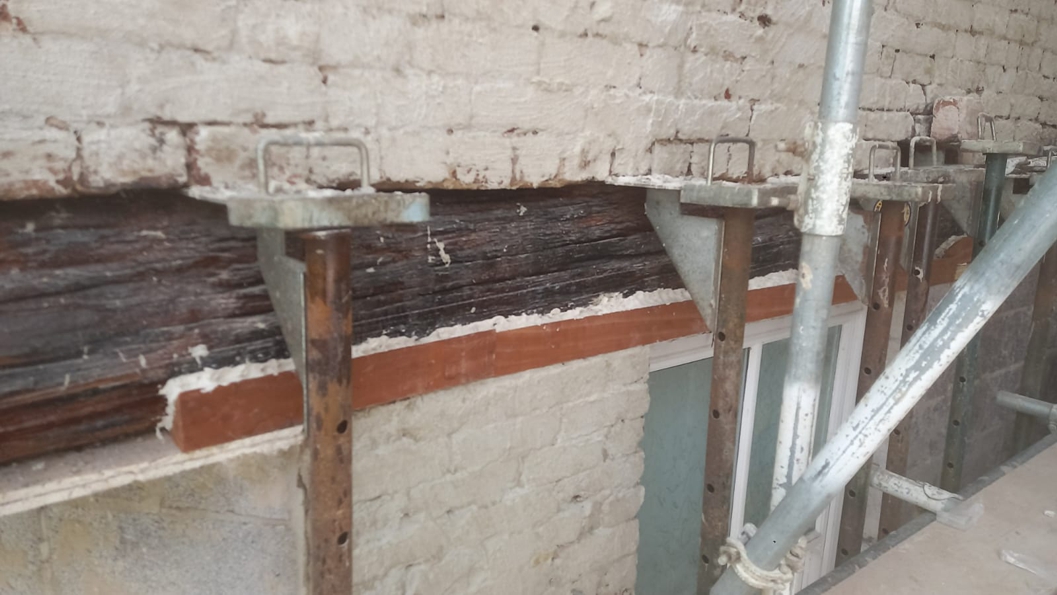

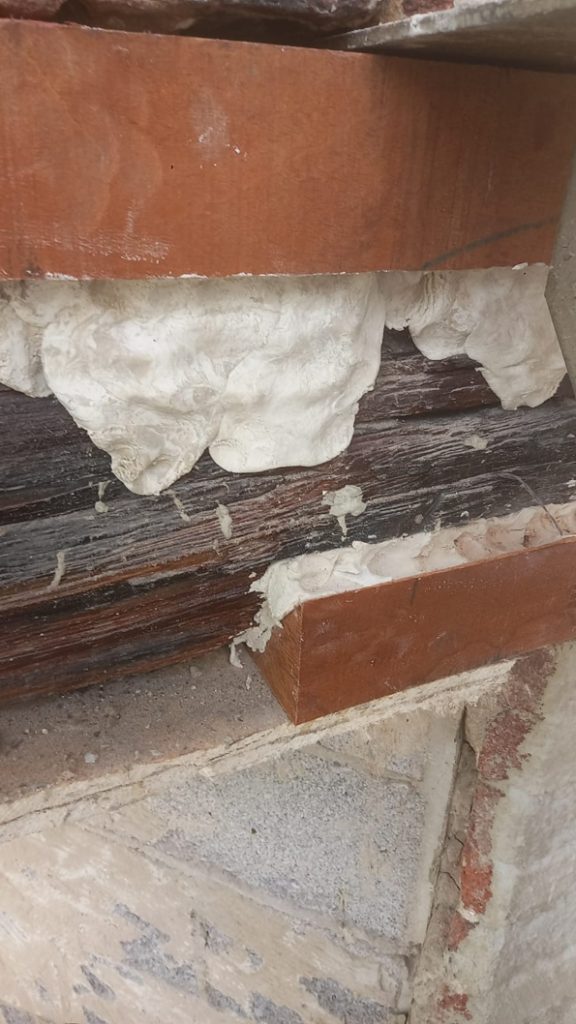

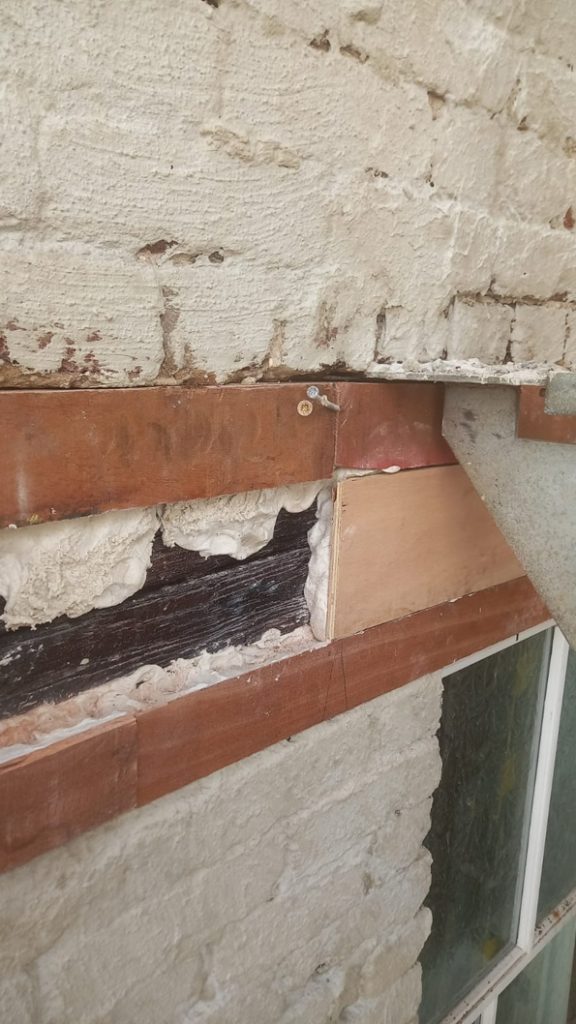

Where the gaps left by rot were particularly big, the homeowner added hardwood inserts on top of the putty to reduce the amount of AB Original required.

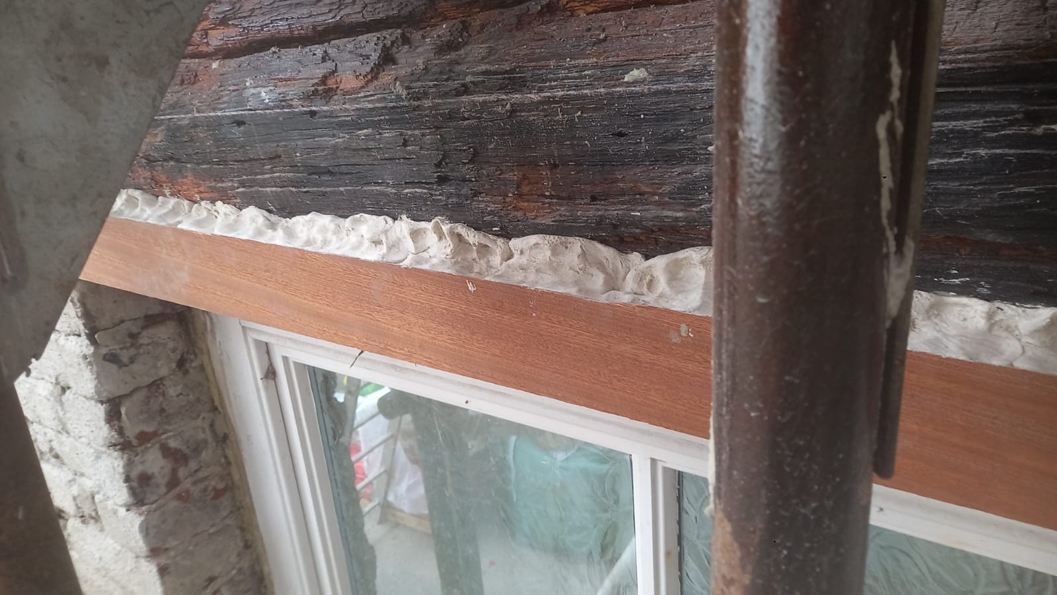

These inserts were pressed directly into the putty whilst it remained soft. A permanent bond was created between the putty and the hardwood once AB Original had cured to its final rock-hard, watertight material.

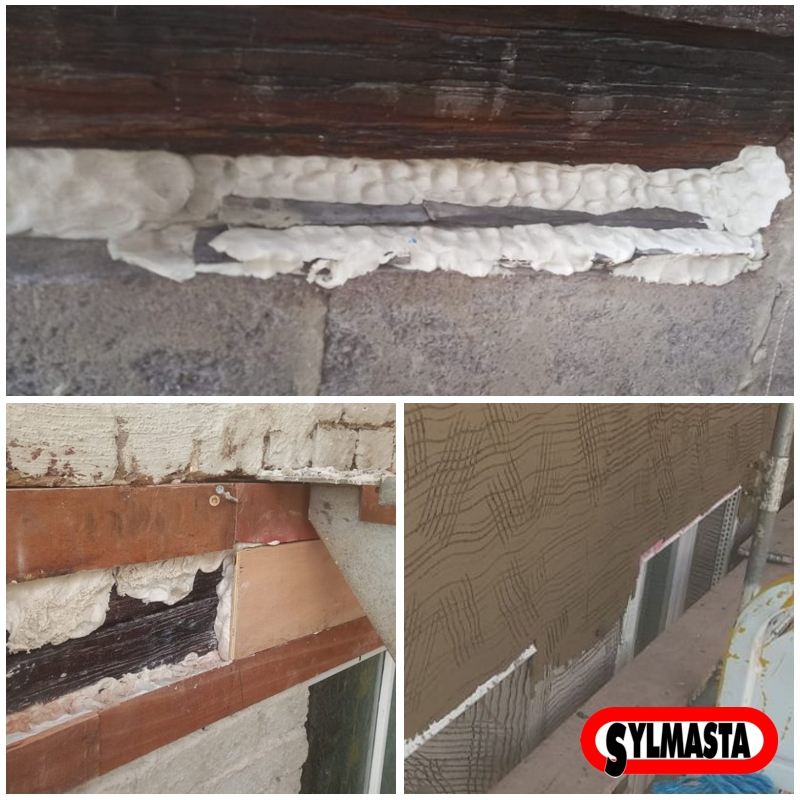

For the AB Original which remained exposed, a little water was used to create an ultra-smooth finish as the putty set. The cured material itself could be rendered onto directly, helping to make adding the cement coating a straightforward task.

Products Used

AB Original Epoxy Putty Stick
Epoxy putty with a two-hour work time which repairs damage in wood caused by rotting
