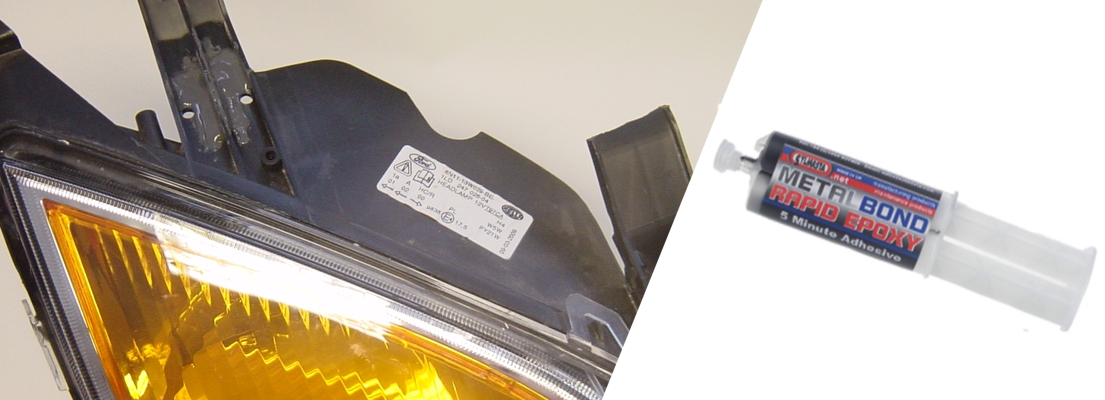

Sylmasta Metal Bond Rapid 5 Minute is a fast curing, grey setting epoxy adhesive used as both a super strength a metal glue and a filler

Metal Bond Rapid 5 Minute Epoxy Adhesive

Metal Bond Rapid is used as an adhesive and filler for metal castings, automotive parts, test rigs and models. As well as metal, it offers excellent adhesion with ceramic, brick, plaster, wood and fibreglass objects.

The 5-minute initial cure of Metal Bond Rapid offers long enough to accurately adjust and assemble parts before the epoxy adhesive begins to set, whilst a 30-minute handling time reduces holding and clamping. A full cure is achieved in 4–6 hours.

Metal Bond Rapid is supplied in either a 25ml syringe or 50ml cartridge. The resin and hardener are pre-measured and extruded via a dispenser, meaning the correct 50-50 ratio is delivered for mixing.

The syringe dispenses via a plunger, whilst the cartridge requires a specialist applicator gun designed for two-part adhesives, including AllWeld and UHU. Applicator guns are available to purchase separately. For more information, please contact Sylmasta.

Sylmasta also manufacture an epoxy adhesive with thinner, almost-clear bond lines for applications where discretion is desired. Rapid 5 Minute offers high-strength adhesion between materials including metal, ceramic, brick, concrete, wood and most hard plastics


Metal Bond Rapid 5 Minute Epoxy Adhesive Details

Parts and surfaces to be bonded must be clean, dry and free from all traces of dust, grease, oil and other materials. To improve bond strength, both surfaces can be lightly abraded prior to the application of Metal Bond Rapid.

To use a Metal Bond Rapid syringe, snap off the nozzle tip and remove the cap from between the piston rods. Extrude the required amount of epoxy. With a Metal Bond Rapid cartridge, use the applicator gun to deliver equal amounts of epoxy.

Once extruded onto a throwaway surface such as a piece of cardboard, mix the two components together using a stirrer for about 30 seconds until an even mix is achieved.

The mixed epoxy is applied to one of the surfaces to be repaired, after which the two surfaces requiring bonding are pressed or clamped together.

Metal Bond Rapid will begin to set after 3 minutes. It should then be left undisturbed to achieve a functional cure for 30 minutes. A full cure is reached after 24 hours.

Once Metal Bond Rapid has been applied, the cap should be placed on part-used cartridges for re-use of the epoxy at a later date. Under the correct conditions, Metal Bond Rapid has a shelf life of two years from the date of manufacture.

Benefits of Metal Bond Rapid 5 Minute Epoxy Adhesive

  • Parts can be adjusted and reassembled before the epoxy adhesive sets for more accurate repairs
  • 30 minute handling time reduces holding and clamping whilst awaiting a functional cure
  • Fast setting for making rapid repairs
  • Sets to a dark metallic grey to blend in with metal
  • Does not drip or run when applied to vertical surfaces

Applications

  • Bonding of metal, ceramics, brick, plaster, wood and fibreglass objects
  • Repairing pinhole leaks, cracks and pitting in pipes and tanks
  • Manufacturing assemblies and model making
  • Repairing industrial equipment

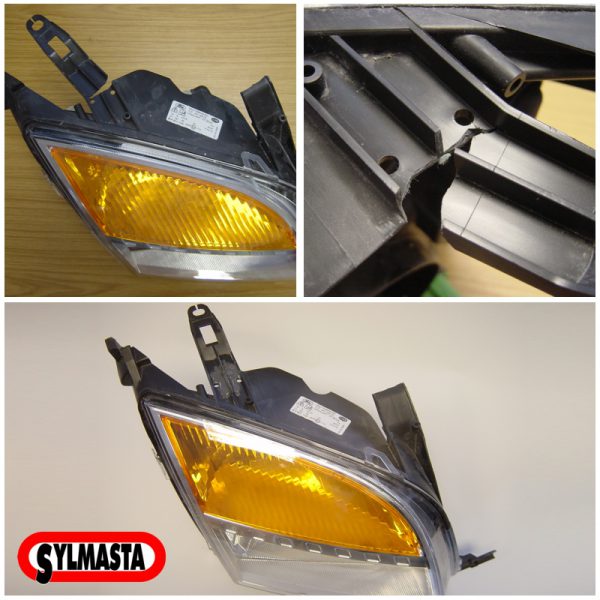

  • Filling holes and cracks in metal castings, automotive parts and machinery

Technical Data

Data
Working Time3 minutes
Initial Cure3–5 minutes
Handling Time30 minutes
Full Cure4-6 hours
Bond Line Thickness4mm
Colour When SetDark-grey

Product Codes

CodeAdhesive Quantity
ST-25ml25ml
ST-50ml50ml

TDS Downloads


Please use the form to enquire about the price and availability of
Metal Bond Rapid 5 Minute Epoxy Adhesive
