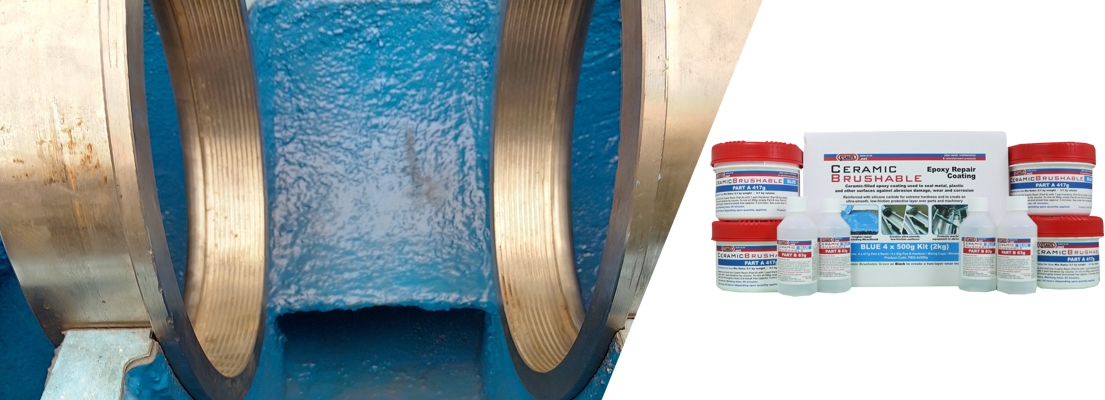

Ceramic Brushable Epoxy Coating
Ceramic Brushable Blue is a ceramic-filled epoxy coating brush applied to metal, wood and plastic surfaces. It is reinforced with silicone carbide, curing to form an ultra-smooth, hard-wearing outer layer which extends the lifespan of parts and machinery by protecting and sealing against abrasion and wear.
The silicone carbide in Ceramic Brushable gives the cured material ultimate hardness and high resistance to abrasion. Coating new or repaired parts and systems with it creates an external shield which prevents wear, corrosion, chemical attack, erosion and pitting damaging the original substate.
Ceramic Brushable is also used to provide surfaces with a smooth finish, improving the efficiency of systems such as chutes by reducing friction and making clean up more straightforward. It is applied to top coat rougher repair compounds like WearShield Epoxy Paste.
The low-friction finish makes Ceramic Brushable ideal for protecting equipment in mills, mines and other highly abrasive industries. It repairs damage to equipment including silos, pumps, metal castings and tanks.
Ceramic Brushable comes in three different colours – Blue, Green and Black. They can be used in conjunction to create a two-layer wear indicator coating. Areas requiring renewed protection are identified when the colour of the lower coating begins showing through the upper.
The 45 minute gel time of Ceramic Brushable allows large quantities to be mixed and carefully applied without the threat of premature curing.
Ceramic Brushable Epoxy Coating Details
Before applying Ceramic Brushable, surfaces should be free of paint, rust and grime and then roughened up through either grit blasting or grinding with a coarse wheel or abrasive disk pad.
Full instructions detailing the preparation process can be found on the Technical Data Sheet and are provided with the product.
Ceramic Brushable should be applied as soon as the preparation procedure is completed. Part A and Part B are mixed at a 3:1 ratio by volume or a 5:1 ratio by weight.
To ease the mixing process, the Ceramic Brushable Part A container has enough room to dispense all Part B into, enabling it to be applied with a brush straight from the container.
The epoxy is brush applied and each coating should be 0.5-1mm thick. To ensure a pinhole-free coating, at least two coats are needed.
Ceramic Brushable has a gel time of 45 minutes. The re-coating time between coats is approximately 4-6 hours after applying. A full cure is achieved 24 hours after the final coat.
To determine the quantity of Ceramic Brushable needed for a specific pipe repair application, please go to the Repair Calculator Tab and enter your repair data.
The light consistency of Ceramic Brushable makes it easy to mix and apply with little sag. It is virtually odourless, with no unpleasant smell, can be easily machined and is temperature resistant to 150°C.
To create a two-layer wear indicator coating, a topcoat of one colour of Ceramic Brushable is applied over a base coat of another colour.
When the base coat colour begins to show through, it is an indication of high-wear. Another coating of Ceramic Brushable should be added to maintain suitable levels of protection for the original substrate.
Benefits of Ceramic Brushable
- Easily mixed and applied – just paint onto a surface using a brush
- Protects against abrasion, corrosion and cavitation
- Creates an ultra-smooth, glass-like finish to all surfaces
- Extremely hard setting
- Longer working time allows for complex jobs to be carried out
Applications
- Protecting new equipment from wear and corrosion
- Providing a final topcoat over repaired surfaces
- Protecting silos, chutes, mills, pumps, impeller blades, valves, fan blades, metal castings, tanks and other machine parts in abrasive environments
- Increasing resistance against corrosion and chemical attack
- Creating a two-layer wear indicator coating
- Reinforcing castings by filling voids
Technical Data
| Data | |
| Work Time | 45 minutes |
| Re-coat Time | 4-6 hours |
| Full Cure | 24 hours |
| Shore D Hardness | 90 |
| Compressive Strength | 111 MPa |
| Max Service Temp | 150°C |
Product Codes
| Code | Colour | Quantity |
| PBG-500g | Blue | 500g |
| PBG-4x500g | Blue | 2kg (4 x 500g) |
| PBG-2kg | Blue | 2kg |
| PBG-5kg | Blue | 5kg |
| PBGR-500g | Green | 500g |
| PBGR-4x500g | Green | 2kg (4 x 500g) |
| PBGR-2kg | Green | 2kg |
| PBGR-5kg | Green | 5kg |
| PBG-BLACK-500g | Black | 500g |
| PBG-BLACK-4x500g | Black | 2kg (4 x 500g) |
| PBG-BLACK-2kg | Black | 2kg |
| PBG-BLACK-5kg | Black | 5kg |
TDS Downloads
Ceramic Brushable Epoxy Coating Repair Calculator
The below Liquid Metal & Ceramic Brushable Coverage Calculator can be used to determine the quantity of Ceramic Brushable needed to coat a specific pipe, cylinder or surface area.
Enter the diameter of the pipe or the width of the repair area in millimetres, the length of the repair area and the coating thickness of Ceramic Brushable to be applied. The wastage percentage is how much Ceramic Brushable you expect to lose in the application.
Once you have entered your data, the calculator will show the amount of Ceramic Brushable required in kilograms. If you require further help with an application, please fill in the report form at the bottom of the calculation and a Sylmasta technician will get back to you.
Ceramic Brushable Epoxy Coating Case Studies

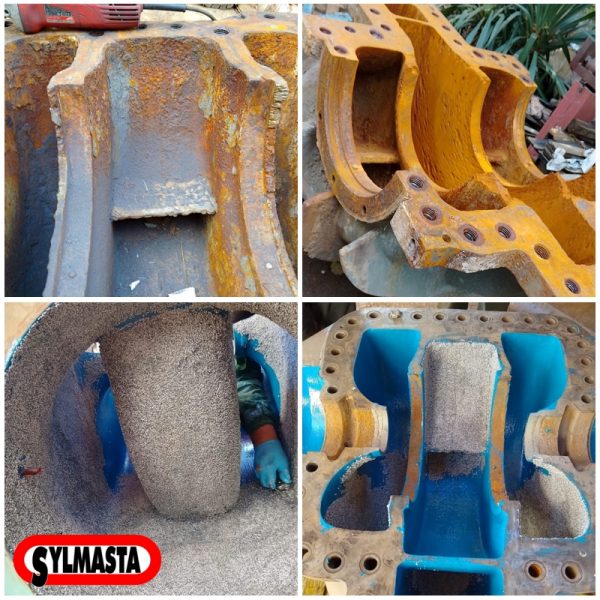

Case Study: Copper Mine Repair Pump Housing Heavily Damaged By River Water Extraction
Case Study: Power Station Repair Extensive Damage to Alloy 20 Pump Lid Caused by Impeller
Case Study: Water Treatment Plant in Puerto Rico Repair Worn Pump Extracting from a Well

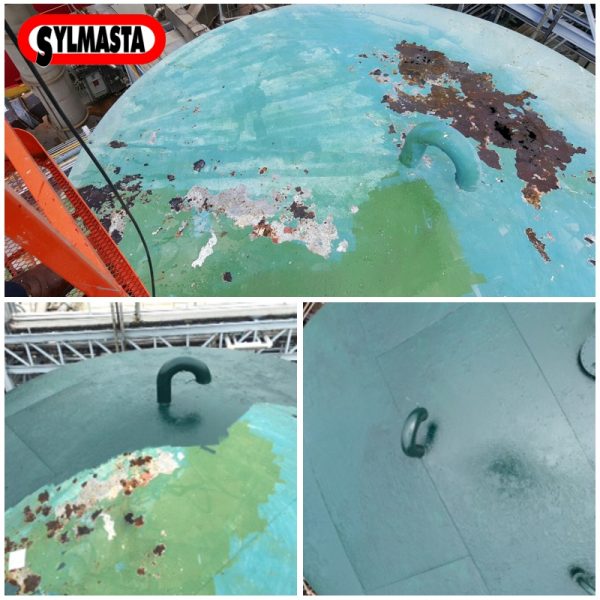

Case Study: Corroded Tank Repair at a Puerto Rico Pharmaceutical Plant

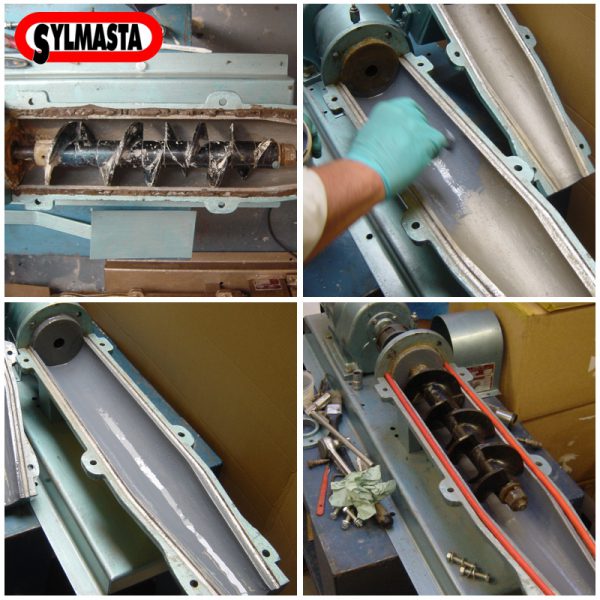

Case Study: Creating an Abrasion Resistant Surface for Pug Mill Extruder Barrels

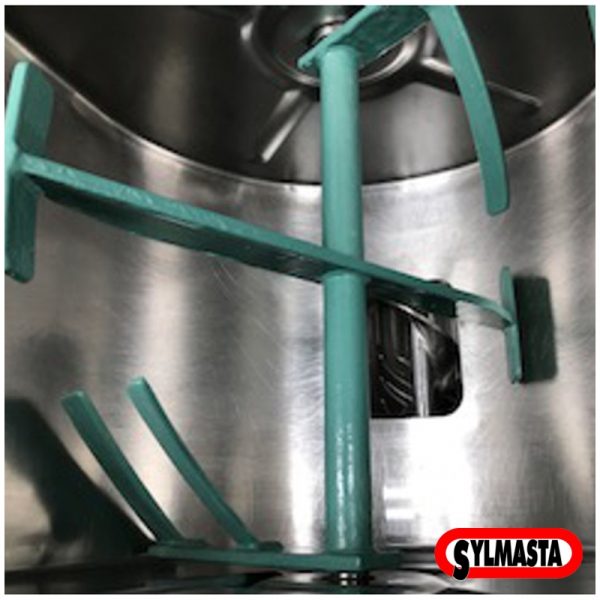

Case Study: Repair of Metal Blades in Bakery Flour Mixers Suffering From Heavy Corrosion
Please use the form to enquire about the price and availability of
Ceramic Brushable Epoxy Coating
Related Abrasion and Wear Protection Products

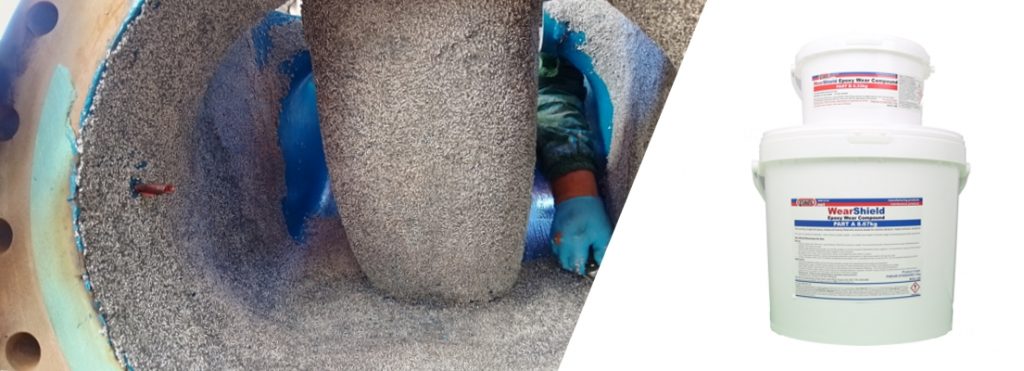

WearShield Impact Resistant Epoxy Paste
Alumina bead-filled epoxy for ultimate hardness and protection against all types of wear and impact damage. It is applied to equipment, machinery and surfaces subject to intense processes in industries including mining, power plants, quarries and mills.
Work Time: 30-60 minutes
Functional Cure: 8-12 hours
Max Service Temp: 120ºC

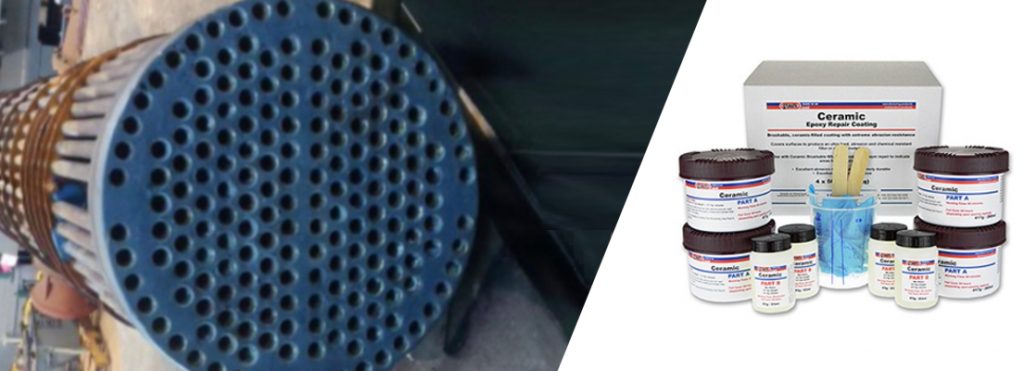

Ceramic Supergrade Epoxy Paste
