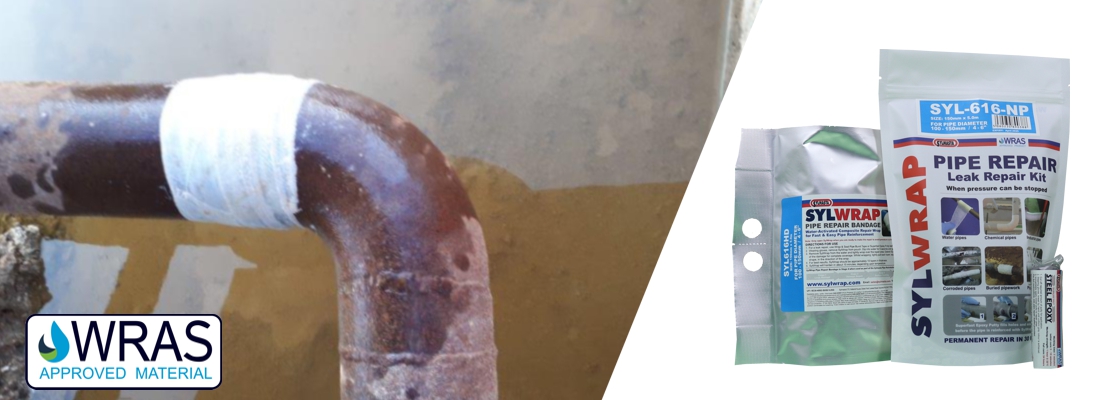

SylWrap Standard Pipe Repair Kit

The SylWrap Standard Pipe Repair Kit permanently seals a burst or leaking pipe where pressure can be turned off in under 30 minutes. It enables any user to make a WRAS approved offline repair to steel, stainless steel, iron, copper, PVC, GRP, clay, ceramic, concrete and rubber pipes by following a simple two-stage process.

Fixing a leaking pipe with a Standard Kit costs a fraction of replacement. It eliminates the expense of hiring a plumber or contractor and the potential wait for availability to make a repair. Systems can go back into operation sooner, reducing downtime.

Repairs made using the Standard Kit are pressure resistant to 30 bar, temperature resistant to 120ºC and effective on pipes carrying hot and cold water and chemicals. WRAS approval means the Standard Kit is certified as safe to use on pipes carrying drinking water.

Effective repairs can be made around difficult elbow joints, tee joints and welded joints, offering a more flexible and versatile option compared to heavy, bulky pipe repair clamps.

No operational training is required to use the Standard Kit. It makes repairs varying from small-scale leaks in domestic kitchen and bathroom plumbing to sealing hydrogen lines in North American power stations.

Other industries where Standard Kits are found include quarries, mines, wastewater treatment, district heating, agriculture, petrochemical plants, oil rigs, nuclear power, freight ships, super yachts and within public buildings including hospitals, hotels and airports.

About

Pipe Size Guide

Case Studies

Videos

About

SylWrap Standard Pipe Repair Kit details

The Standard Kit contains Superfast Epoxy Putty Stick and a SylWrap Pipe Repair Bandage. Superfast Epoxy Putty is kneaded by hand until it turns a uniform colour. It is then pushed into the hole or crack requiring repair.

Within 5-10 minutes, the putty will harden inside the hole or crack. It forms a watertight material as hard as steel, sealing the leak with pressure resistance to 30 bar.

The second stage of the repair sees the putty overwrapped with SylWrap Pipe Repair Bandage. SylWrap is a composite repair wrap with a water-activated resin. When wrapped and smoothed around pipework, it sets to provide a rock-hard, impact resistant protective shell.

For live leak pipe repair where pressure cannot be turned off, please see the SylWrap Universal Pipe Repair Kit. The Universal Kit contains additional Wrap & Seal Pipe Burst Tape for sealing live leaks.

For regular pipe repair users, Sylmasta have developed the SylWrap Contractor Case containing enough products for up to six pipe repairs. The Case is easy to store either on the van or on site and works out at a cheaper cost-per-repair than buying individual Pipe Repair Kits.

The Contractor Case is approved for use by several UK water companies. Engineers who are equipped with a Case have everything needed to make live leak repairs as soon as problems on the public supply network are identified, reducing the loss of precious water.

Benefits of a SylWrap Standard Pipe Repair Kit

The user can fix a burst or leaking pipe at a fraction of the cost of hiring a plumber
Repairs can be made easily and in under 30 minutes
Increases pressure resistance, chemical resistance and improves longevity of pipes

Applications

Copper pipe repair, PVC plastic pipe repair, steel pipe repair, iron pipe repair, GRP pipe repair, ceramic pipe repair, concrete pipe repair, rubber pipe repair
Fixing leaking bathroom, kitchen and other household pipes
Pipe repairs at wastewater treatment works, quarry wash plants, dry risers, petrochemical plants, nuclear power plants, oil rigs and breweries
WRAS approved for repairs to pipes carrying drinking water

Technical Data

	Data
SylWrap Work Time	2–5 minutes
Functional Cure	30–45 minutes
Full Cure	24 hours
Cured Material Life	10–20 years
Max Service Temp	120°C / 250°F
Max Pressure Resistance	30 bar

Product Codes

Please see Pipe Size Guide Tab for SylWrap Standard Pipe Repair Kit product codes

TDS Downloads

Download SylWrap Standard Pipe Repair Kit TDS

Pipe Size Guide

SylWrap Standard Pipe Repair Kit Size Guide

The below guide details the size of SylWrap Pipe Repair Bandage and the diameter of pipe each Standard Pipe Repair Kit is designed to repair.


Product Code	SylWrap Bandage Size	Repairs Pipe Diameter
SYL-106-UP	25mm x 1.8m	Up to 15mm
SYL-206-UP	50mm x 1.8m	15 – 25mm
SYL-212-UP	50mm x 3.6m	25 – 50mm
SYL-309-UP	75mm x 2.7m	25 – 50mm
SYL-312-UP	75mm x 3.6m	50 – 75mm
SYL-412-UP	100mm x 3.6m	50 – 100mm
SYL-416-UP	100mm x 5.0m	75 – 125mm
SYL-616-UP	150mm x 5.0m	100 – 150mm
SYL-633-UP	150mm x 10.0m	150 – 300mm
SYL-866-UP	200mm x 20.0m	300 – 600mm

Case Studies

SylWrap Standard Pipe Repair Kit Case Studies

Case Study: Burst Copper Pipe Repair in Portable Horse & Dog Shower Unit

Copper pipes in a number of horse and dog showers which burst when temperatures in the UK went as low as -15°C are repaired, returning the units to service in under 30 minutes

Case Study: Boat Owner Repairs Pinhole Leak in Rubber Hose Connected to Engine

A hardened rubber hose playing a vital role in cooling a boat engine undergoes repair after developing a pinhole leak in an area of the vessel which was extremely difficult to access

Case Study: Leaking Hydrogen Line Pipe Repair at Power Station in Puerto Rico

Leaking joints at either end of a hydrogen line installed as part of a new cooling system for a Puerto Rico power station required sealing before the pipe went into full service

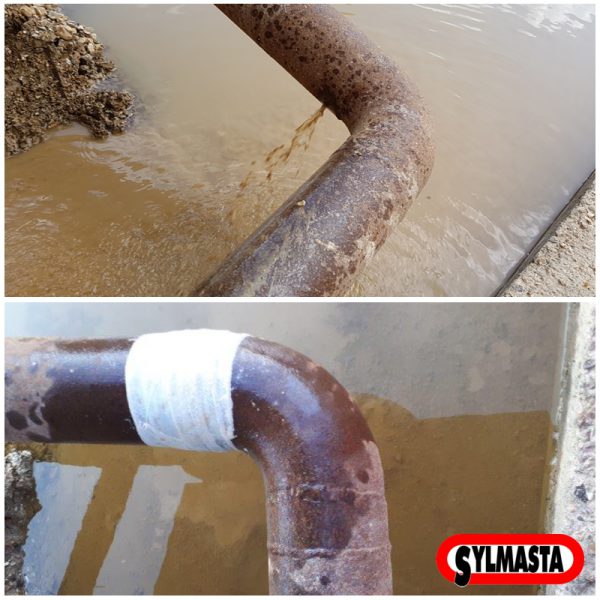

Case Study: Repair of a Leaking 150mm Steel 90 Degree Elbow Bend at a Quarry Wash Plant

When a quarry in the UK could not fit a pipe repair clamp around a leaking 150mm steel 90 degree elbow bend, they instead used a SylWrap Pipe Repair Kit to seal the line

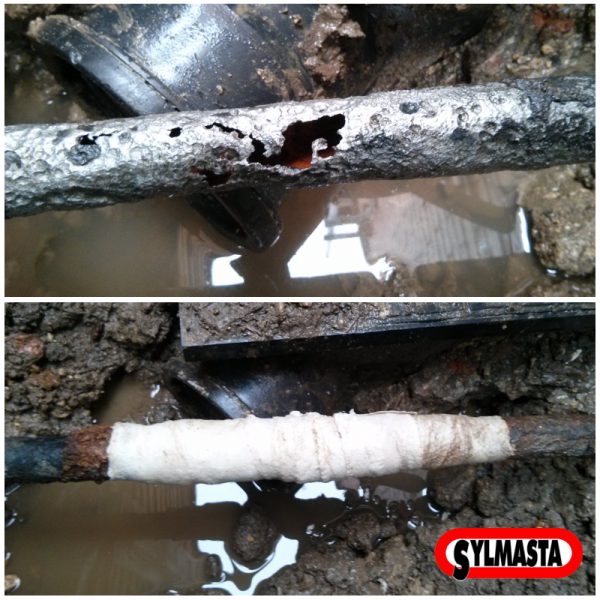

Case Study: Repair of a Cracked 90-year-old 70mm Malleable Iron Water Supply Pipe

With replacement fittings for a cracked 90-year-old malleable iron pipe no longer manufactured because of its age, a repair solution was needed to avoid replacing the entire line

Case Study: Repair of a Cracked Copper Pipe in a Camper Van Boiler System

A camper van owner repairs a very difficult-to-access copper pipe in the van’s boiler system which was leaking water through a large crack whenever the boiler was turned on

Case Study: Leak Repair of a Pierced 300mm Plastic Pipe in a Quarry Wash Plant

A pierced 300mm plastic pipe feeding the aggregate wash plant at a quarry in the United Kingdom undergoes leak repair, avoiding a disruptive shutdown to fit a replacement

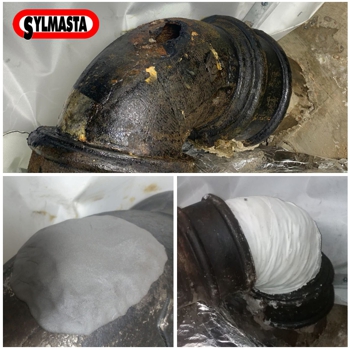

Case Study: Leaking Cast Iron Wastewater Pipe Repair at a London Hotel

A cracked cast iron wastewater pipe in a London hotel required a quick repair to prevent one of the most prestigious rooms having to be closed to the public

Case Study: Pinhole Repair of a Steel Pipe in a Furniture Factory Sprinkler System

A furniture company repaired a pinhole leak on a steel pipe in their factory’s sprinkler system after being initially informed that the only solution was to replace the damaged section

Videos

SylWrap Universal Pipe Repair Kit Videos

Repair of 3mm pinhole on a 100mm stainless steel pipe
Test repair carried out in the Sylmasta UK Lab to a pinhole leak on a 100mm steel pipe with pressure turned off.
